RG142 series - ATxTel Flexible Coaxial Cable
RG142 series - ATxTel Flexible Coaxial Cable
Note: All products can be customized, please add the item to the quote and highlight the required specifications in the quote request form.
Couldn't load pickup availability
Price does not include shipping and import tariff. Tax, shipping, and import tariff will be added to the final quote based on the shipping address.
|

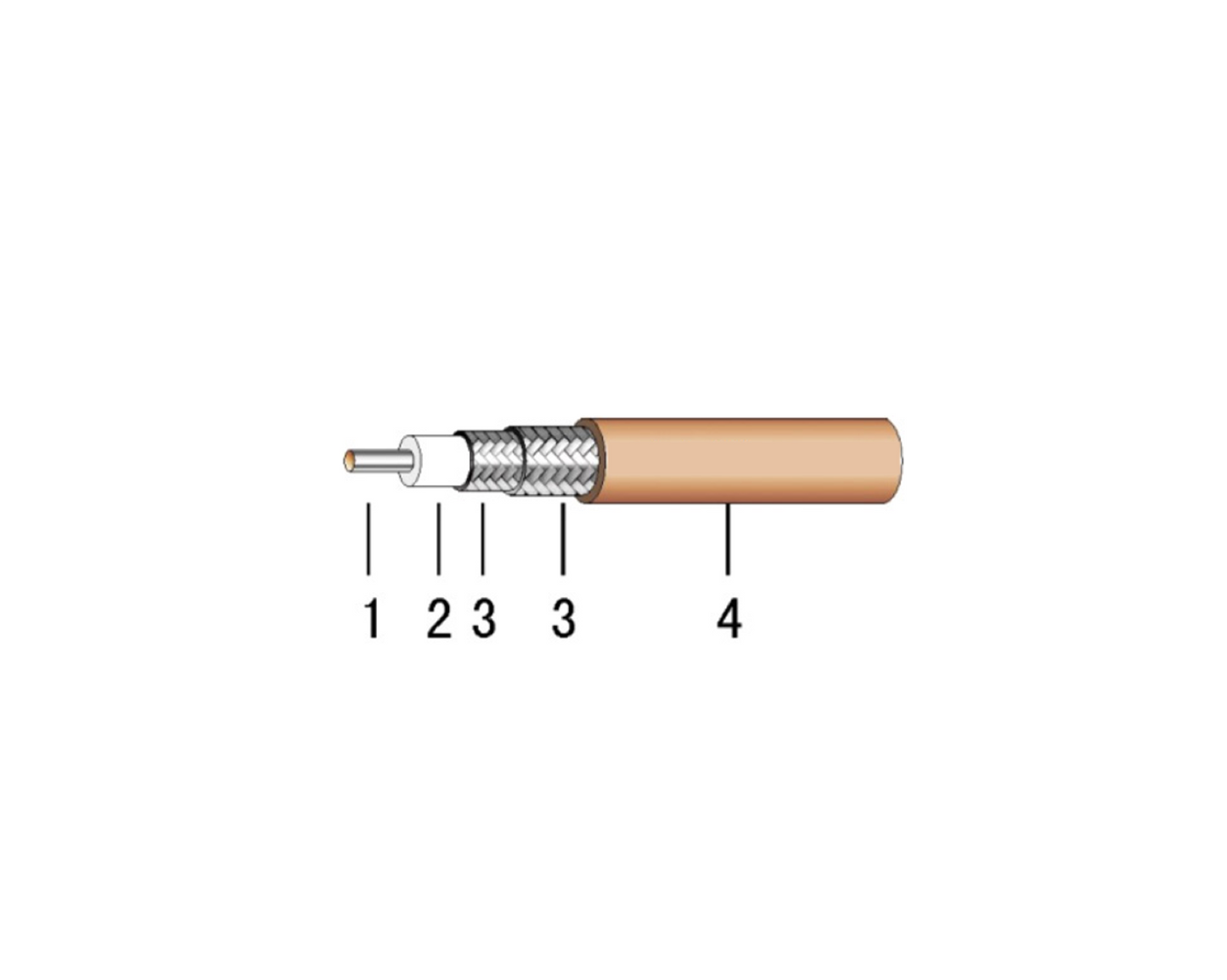

Construction Materials |
|
||
|
1 |
Inner conductor |
|
|
|
2 |
Dielectric (3mm) |
||
|
3 |
Outer conductor |
||
|
4 |
Jacket (4.95mm) |
||
|
Electrical Specifications |
|
|
Cable impedance |
50 ohm |
|
Capacitance |
105 pF/m |
|
Velocity |
70% |
|
Voltage withstanding |
5000 Vrms |
|
Working voltage |
1400 Vrms |
|
Operating frequency |
6GHz (Max. 12.4 GHz) |
|
Mechanical & Environmental Specifications |
|
|
Bend radius |
25 mm |
|
Temperature range |
-55 ~ +200 ℃ |
|
RoHS compliance |
Compliant |
|
Attenuation Typical Value (25°C) |
|
|
100MHz |
0.15 dB/m |
|
400 MHz |
0.30 dB/m |
|
1000 MHz |
0.48 dB/m |
|
3000 MHz |
0.88 dB/m |
|
5000 MHz |
1.20 dB/m |
|
6000 MHz |
1.36 dB/m |
