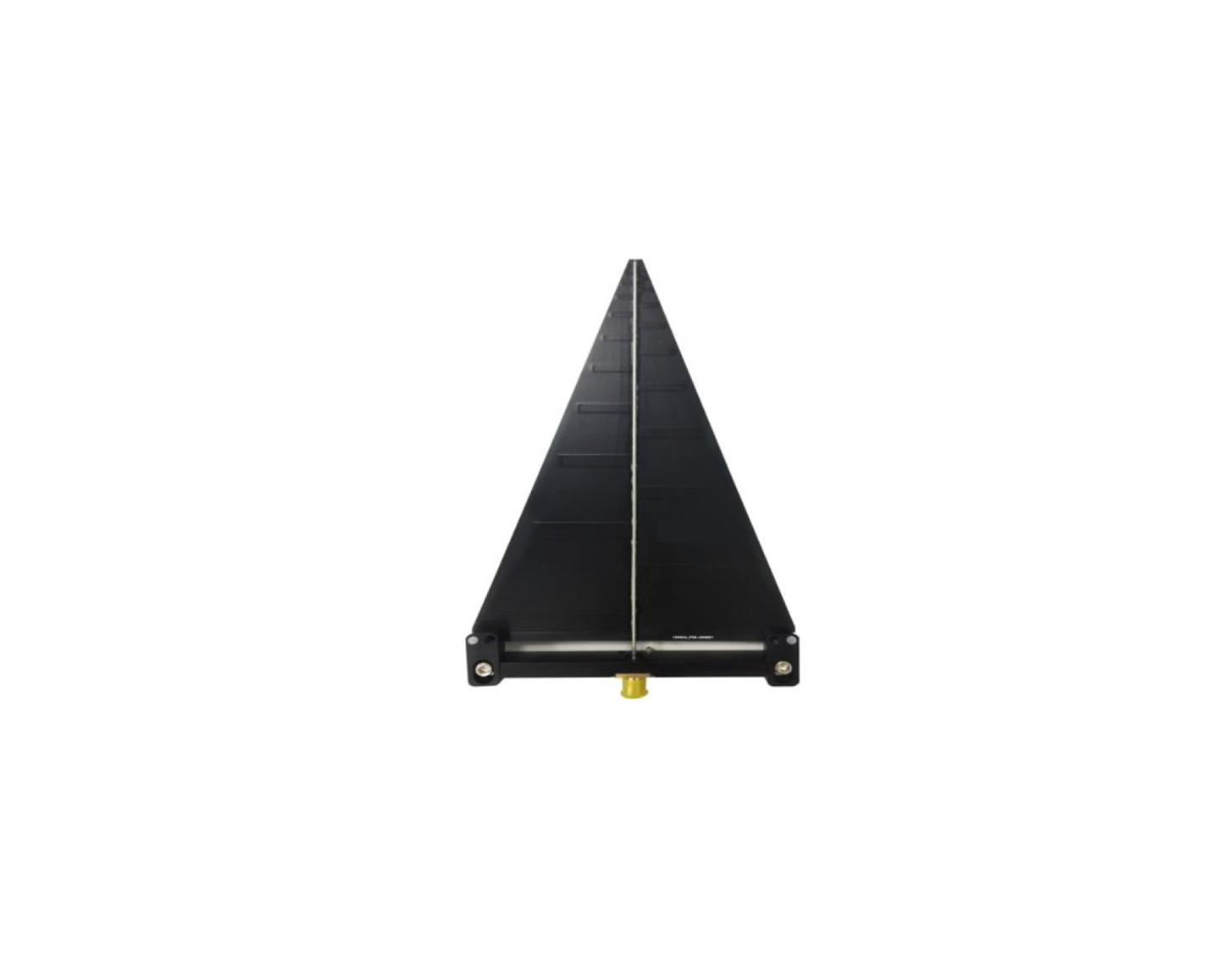

Log Periodic High Gain WiFi Antenna
Log Periodic High Gain WiFi Antenna
Note: All products can be customized, please add the item to the quote and highlight the required specifications in the quote request form.
Couldn't load pickup availability
Price does not include shipping and import tariff. Tax, shipping, and import tariff will be added to the final quote based on the shipping address.
The Fishbone Log-Periodic High-Gain Antenna is designed for WiFi and UWB testing, delivering superior performance across a wide frequency range. Engineered for precision, this antenna ensures reliable signal coverage and minimal interference, making it ideal for laboratory applications.
Each unit includes an adjustable antenna mount for flexible positioning and a 30cm high-quality RF cable to maintain signal integrity. Whether for research, development, or advanced testing environments, these antennas provide exceptional efficiency and adaptability.
Specifications:
- Connector Type: SMA (F)
- Frequency Range: 2 ~ 8 GHz
- Gain: < 9dB
- Polarization Mode: Line
- Impedance Characteristic:50 Ω
- Temperature Range: -45°c ~ +85°c
