E Series - ATX280 Low Loss Amplitude Stable RF Cable
E Series - ATX280 Low Loss Amplitude Stable RF Cable
Note: All products can be customized, please add the item to the quote and highlight the required specifications in the quote request form.
Couldn't load pickup availability
Price does not include shipping and import tariff. Tax, shipping, and import tariff will be added to the final quote based on the shipping address.

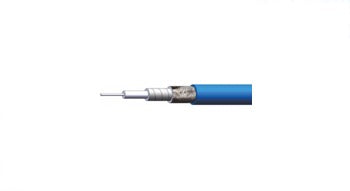

ATX-E280 RF Cable |
||||
|
Construction Materials |
||||
|
1 |
Inner Conductor |
Silver-plated Copper |
0.53 mm |
|
|
2 |
Dialectic |
Low-density PTFE |
1.63 mm |
|
|
3 |
Outer Conductor |
Silver-plated copper tape wrapping |
1.83 mm |
|
|
4 |
Inner Shield |
Silver-plated copper wire |
2.18 mm |
|
|
5 |
Outer Shield |
Blue PFA |
2.65 mm |
|
|
Mechanical Specifications |
||||
|
Bending radius |
10.40 mm |
|||
|
Repeated bending radius |
26.00 mm |
|||
|
Weight |
0.022 Kg/m |
|||
|
Operating temperature range |
-55°c ~ +125°c |
|||
|
Electrical Properties |
||||
|
Frequency Coverage |
Up to 12GHz |
|||
|
Impedance |
50 Ω |
|||
|
Transmission speed |
70% |
|||
|
Shielding Effectiveness |
90dB |
|||
|
Attenuation vs. Frequency (typical) - Consider additional 1-2 dB for end connectors |
||||
|
Frequency |
Attenuation (dB/100 m) |
|||
|
100 MHz |
21.10 |
|||
|
300 MHz |
37.00 |
|||
|
1000 MHz |
69.30 |
|||
|
3000 MHz |
125.00 |
|||
|
6000 MHz |
183.70 |
|||
|
8500 MHz |
224.00 |
|||
|
12400 MHz |
279.00 |
|||
