Butler Matrix - High Performance Butler Matrix (0.6- 7.25GHz)

Butler Matrix - High Performance Butler Matrix (0.6- 7.25GHz)

$7,800.00
$7,800.00
Sale Sold out
Configuration
Connectors
Frequency

Note: All products can be customized, please add the item to the quote and highlight the required specifications in the quote request form.

Price does not include shipping and import tariff. Tax, shipping, and import tariff will be added to the final quote based on the shipping address.

ATxTel ATX-MI-BM-xXx-0672-SMAF is a high-performance Butler matrix, covering the frequency range of 0.6-7.25 GHz. It can transfer signals reciprocally between any of its ports with superior phase accuracy, amplitude balance, optimized insertion loss, and high port-to-port isolation.

Key Features

Feature

Advantage

High port-to-port isolation

This can reduce the interference between the adjacent channel signals.

Low VSWR

It can better match the 50Ω system, reducing the signal's reflection and energy loss.

High Power

Every port can accept the input signal with a CW power of 5W, which is good for big signal measurement.

Excellent performance stability and repeatability

Maintain consistent system performance, and reduce the need for calibration.

Specifications

·  Power(max.): CW: 5W (single Input-Port), Peak: 500W

·  Frequency Coverage: 0.617- 7.25GHz

·  Connector: SMA (F)

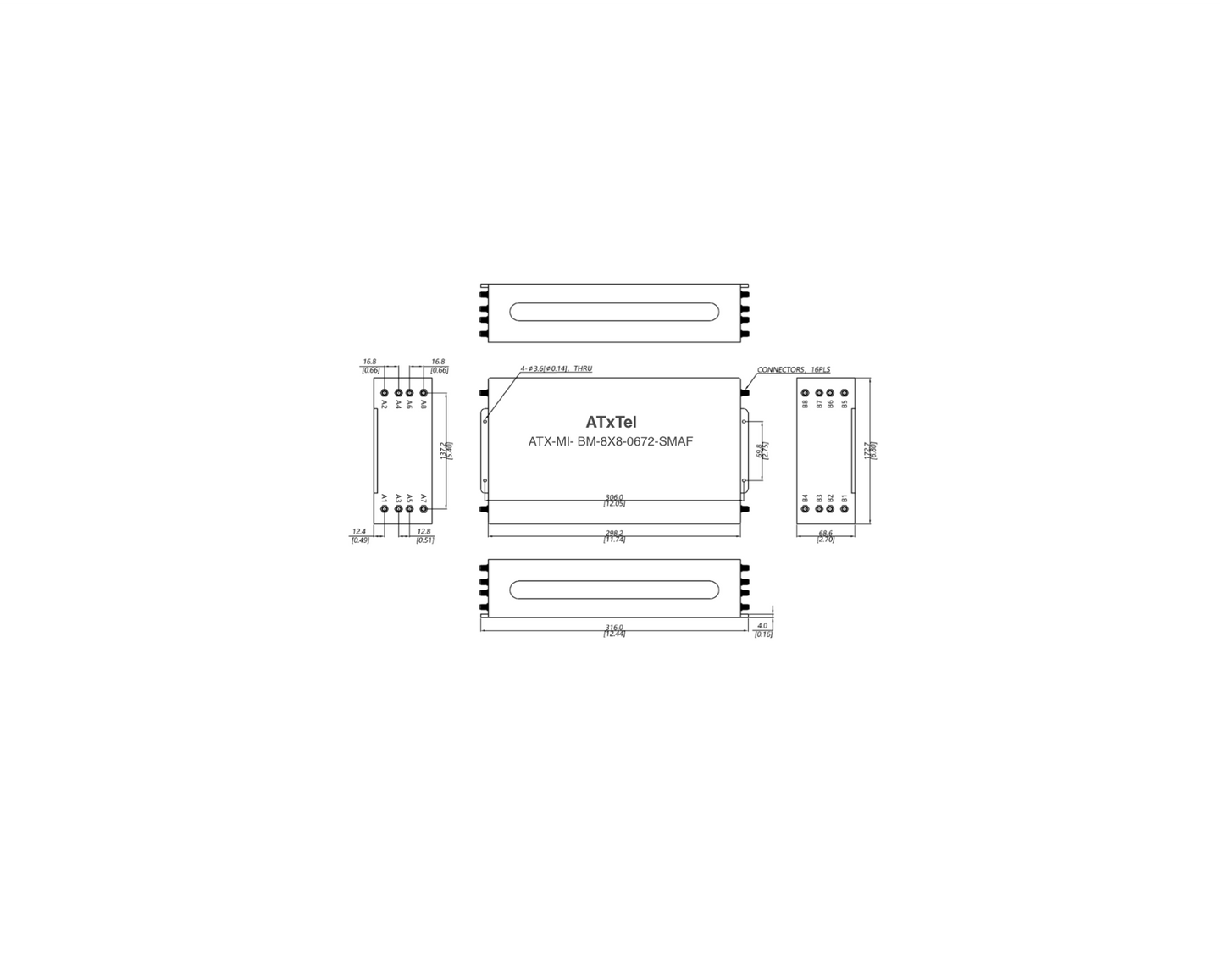

·  Dimension: 316x172.7x68.6mm (LxWxH)

·  Weight(max.): 5700g

·  Finishing: Spraying plastics

·  Temperature: Operating: -40~+70°C; Storage: -55~+85°C



Frequency Range
(GHz)

0.617-0.96

1.427-2.69

3.3-5

5.15-7.25

VSWR for all RF ports
(Max.)

1.4

1.5

1.5

1.6

Insertion Loss*
dB/(Max.)

12

13.2

14.6

15.9

Amplitude Balance
dB/(Max.)

±1.5

±1.4

±1.4

±1.5

Amplitude Flatness per path
dB/(Max.)

±1.4

±1.6

±1.6

±1.7

Phase Accuracy
Deg./(Max.)

±13

±12

±14

±14

Isolation
dB/(Min.)

17

14

14

13

* Theoretical 9dB included



Butler Matrix

4x4

8x8

Phase Accuracy
Typical phase accuracy over the optimized frequency range

5°

7°

Amplitude Balance
Typical amplitude balance over the optimized frequency range

0.5dB

0.8dB

Max Insertion Loss
Including theoretical 9dB loss

9.8dB

15.9dB

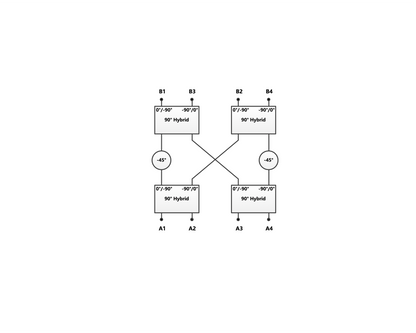

4x4 Butler Matrix (ATX-MI- BM-4X4-0672-SMAF)

Input

Output

A1

A2

A3

A4

B1

-45

-135

-90

-180

B2

-90

0

-225

-135

B3

-135

-225

0

-90

B4

-180

-90

-135

-45

8x8 Butler Matrix (ATX-MI- BM-8X8-0672-SMAF)

Input

Output

A1

A2

A3

A4

A5

A6

A7

A8

B1

-112.5

-202.5

-135

-225

-112.5

-202.5

-180

-270

B2

-135

-45

-247.5

-157.5

-180

-90

-337.5

-247.5

B3

-157.5

-247.5

0

-90

-247.5

-337.5

-135

-225

B4

-180

-90

-112.5

-22.5

-315

-225

-292.5

-202.5

B5

-202.5

-292.5

-225

-315

-22.5

-1125.5

-90

-180

B6

-225

-135

-337.5

-247.5

-90

0

-247.5

-157.5

B7

-247.5

-337.5

-90

-180

-157.5

-247.5

-45

-135

B8

-270

-180

-202.5

-112.5

-225

-135

-202.5

-112.5
