ATxTel

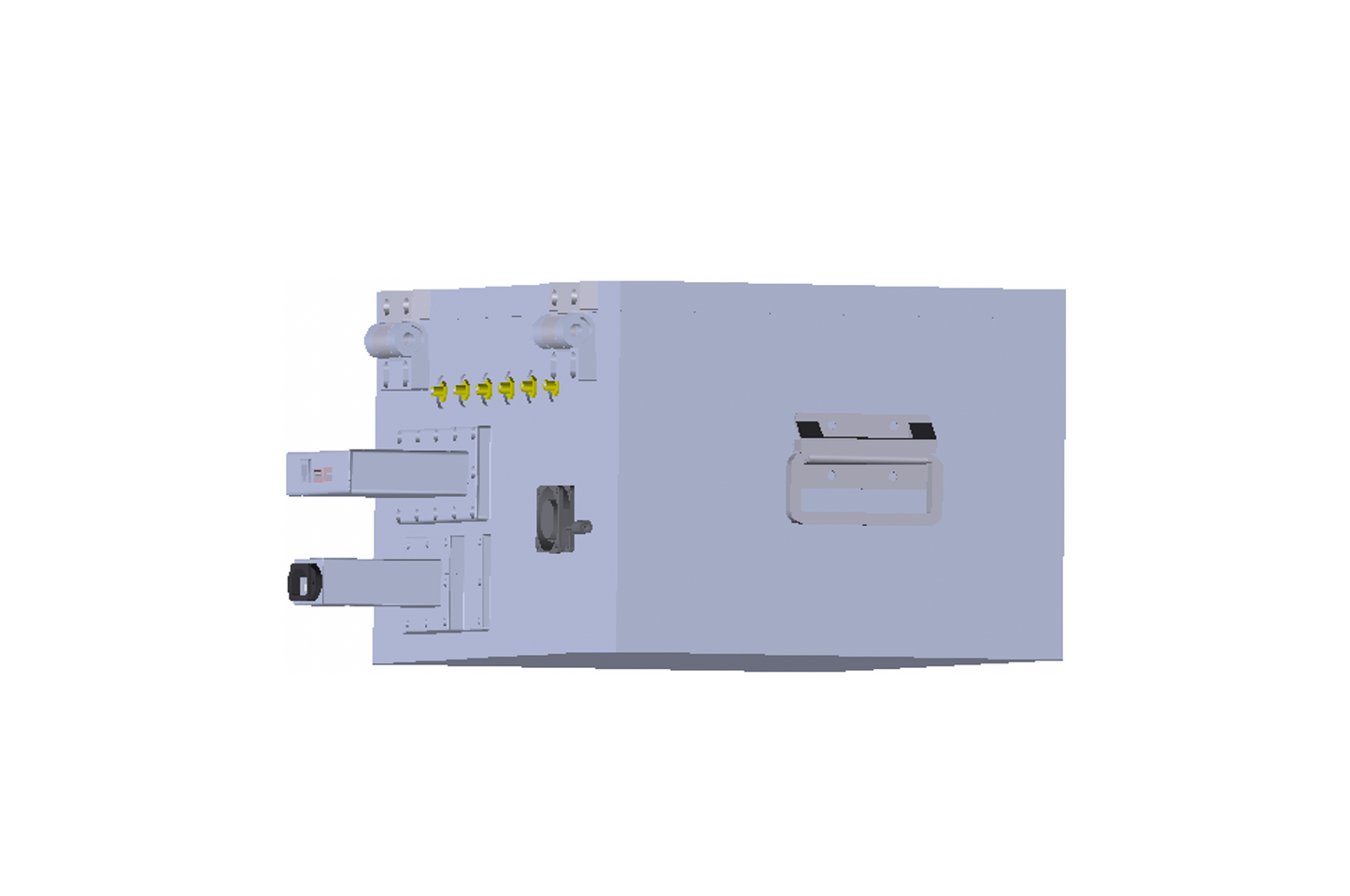

Bench-top Multi-Purpose RF Isolation unit
Bench-top Multi-Purpose RF Isolation unit
Note: All products can be customized, please add the item to the quote and highlight the required specifications in the quote request form.
Couldn't load pickup availability
Price does not include shipping and import tariff. Tax, shipping, and import tariff will be added to the final quote based on the shipping address.
Bench-top multi-purpose RF isolation unit for RF testing:
|
No |
Items |
Description |
|
1 |
Outside (W*D*H) |
434 x 282 x 221 mm (not including I/O's) |
|
2 |
Inside(W*D*H) |
414 x 262 x 193 mm |
|
3 |
Operation mode |
Manual - Top loading swing away door |
|
4 |
Absorber |
Semi-anechoic 50mm |
|
5 |
Isolation (without I/O’s) |
> 90dB (800GHz - 6GHz) |
|
6 |
Filter I/O’s |
1x AC 2x USB 3.1 (Type A to Type A) 1x Gigabit Ethernet POE 6x SMA RF Connectors 1x 60mm Honeycomb Vent 1 x Fan |
