Bench-top Clamshell RF Isolation unit
Bench-top Clamshell RF Isolation unit
Regular price
$3,000.00
Regular price
Sale price
$3,000.00
Unit price
per
Note: All products can be customized, please add the item to the quote and highlight the required specifications in the quote request form.
Couldn't load pickup availability
Price does not include shipping and import tariff. Tax, shipping, and import tariff will be added to the final quote based on the shipping address.

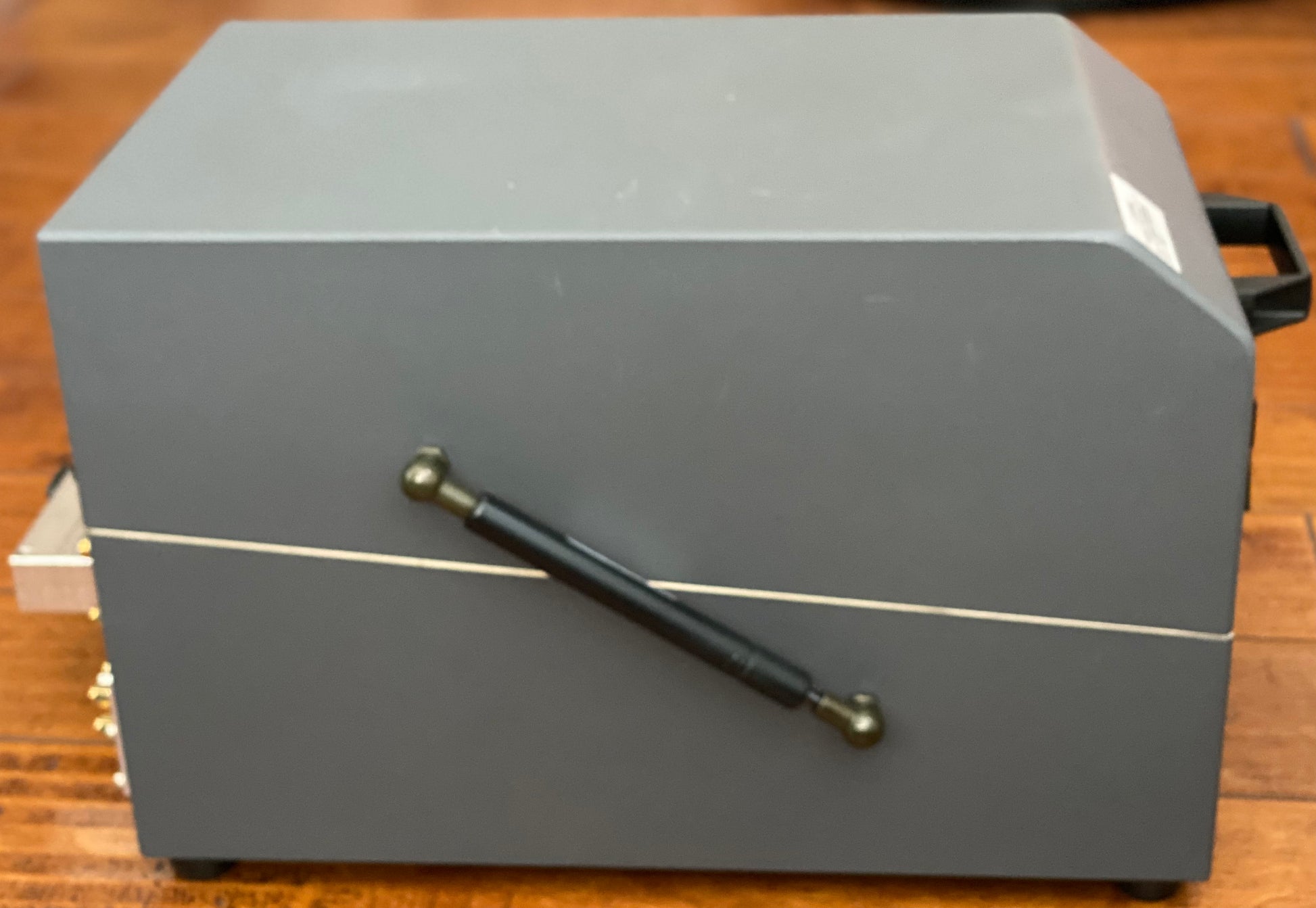

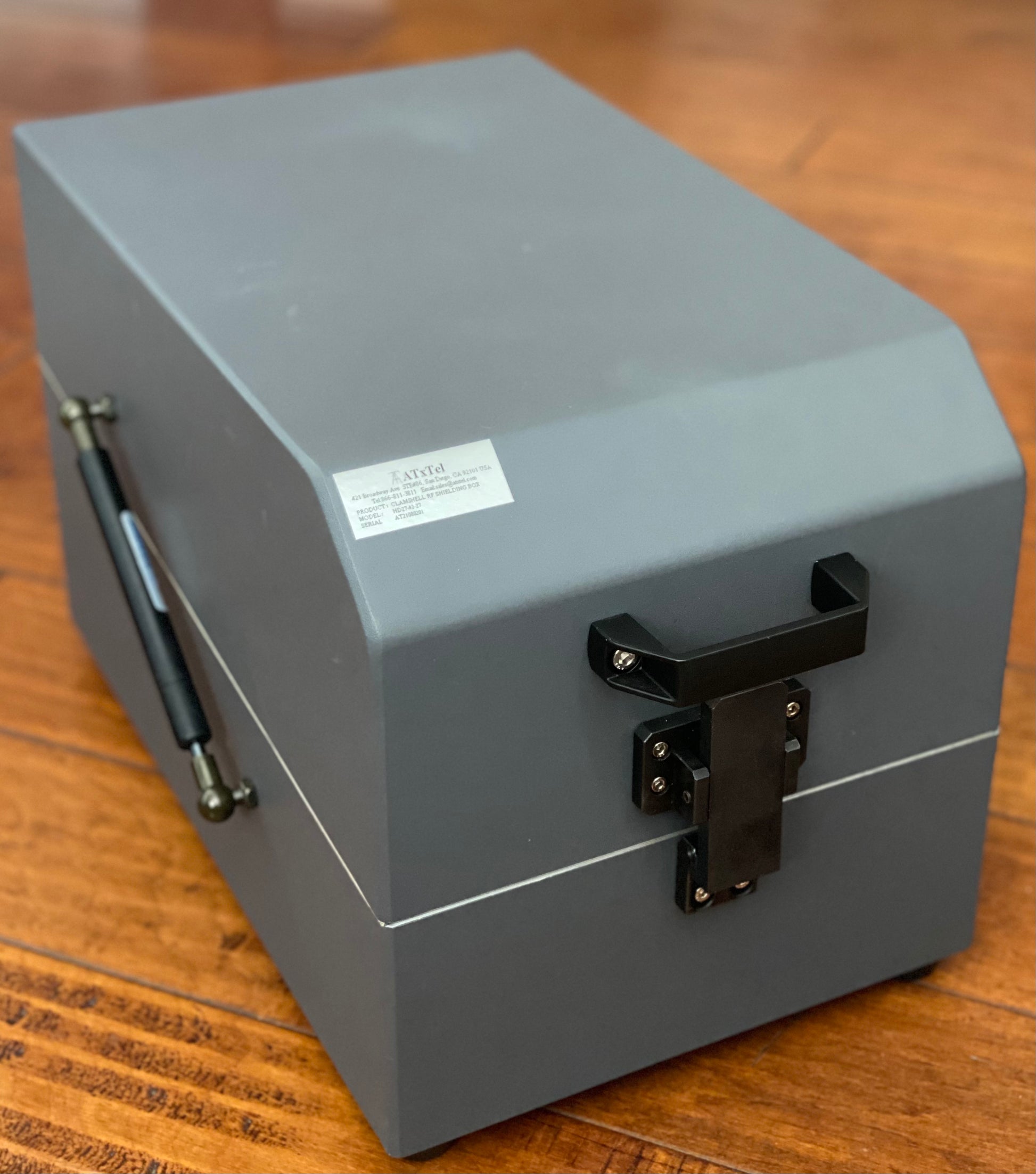

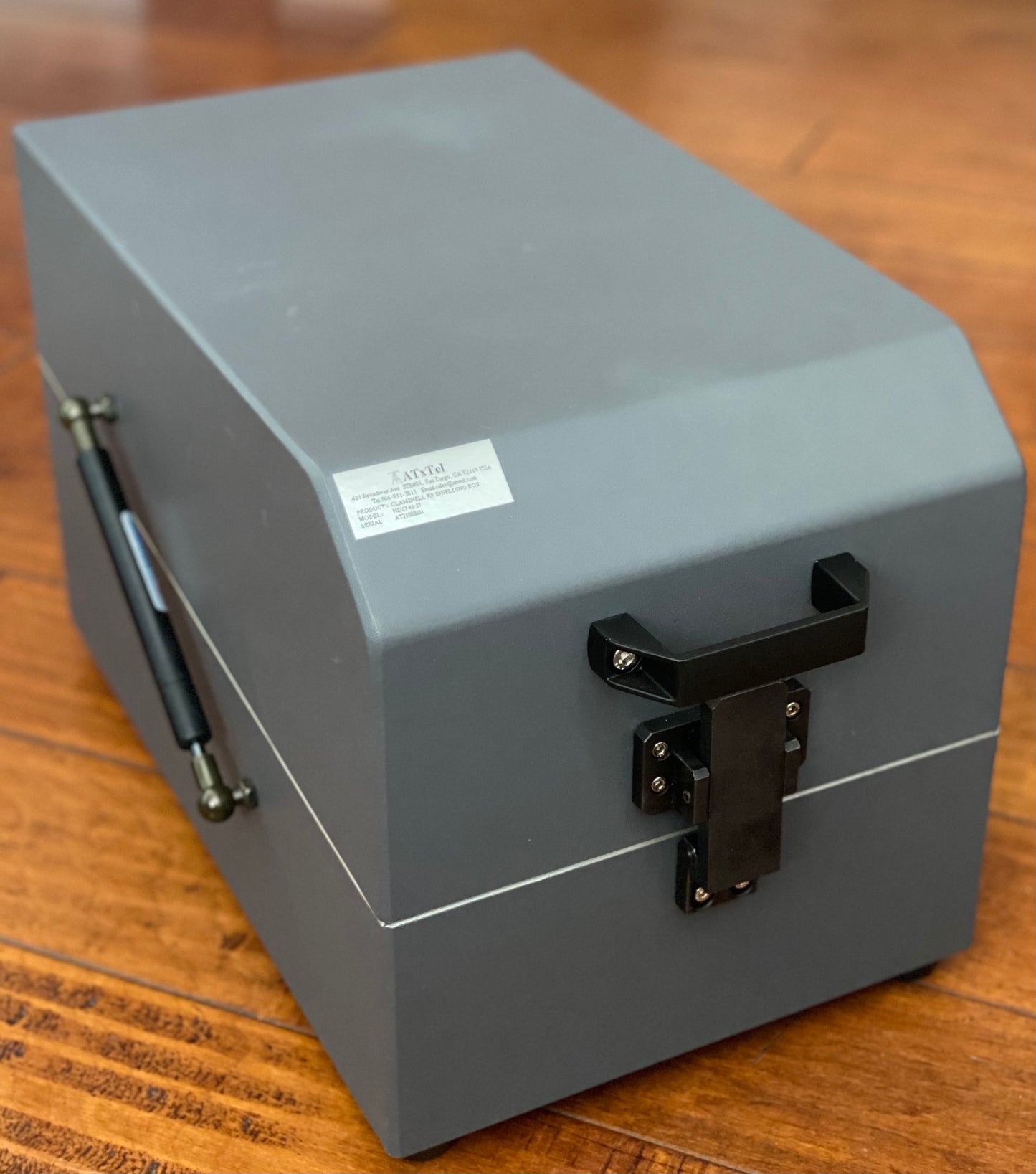

Bench-top clamshell RF isolation unit for conductive testing:
|
No |
Items |
Description |
|
1 |
Outside (W*D*H) |
265 x 420 x 265 mm (not including I/O's) |
|
2 |
Inside(W*D*H) |
243 x 388 x 243 mm |
|
3 |
Operation mode |
Manual |
|
4 |
Absorber |
Semi-anechoic |
|
5 |
Isolation |
> 80dB (900M ~ 8GHz) |
|
6 |
Filter |

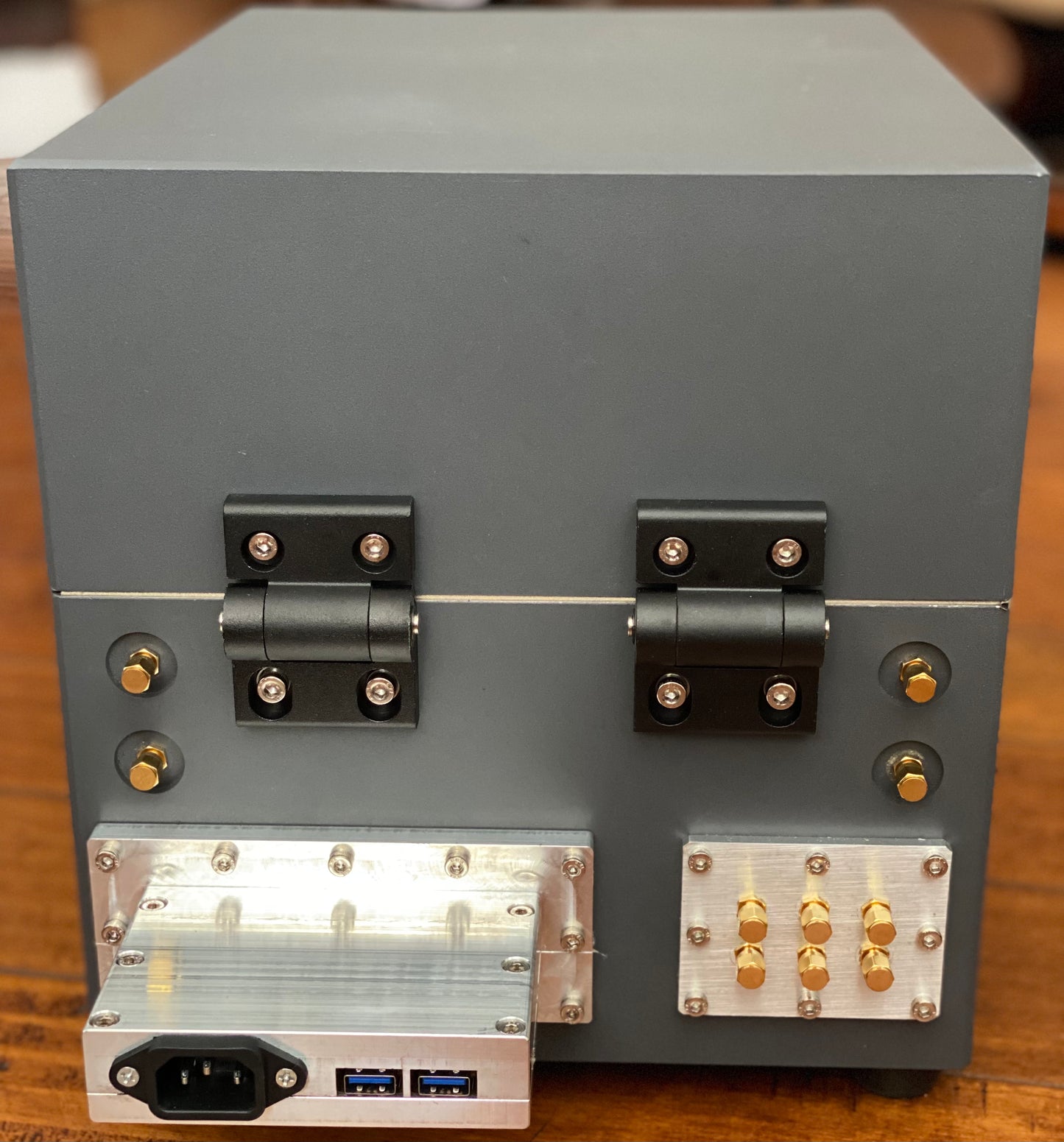

10x SMA 2x USB 1x AC |
