ATxTel B Series Low Loss Flexible RF Cable
|

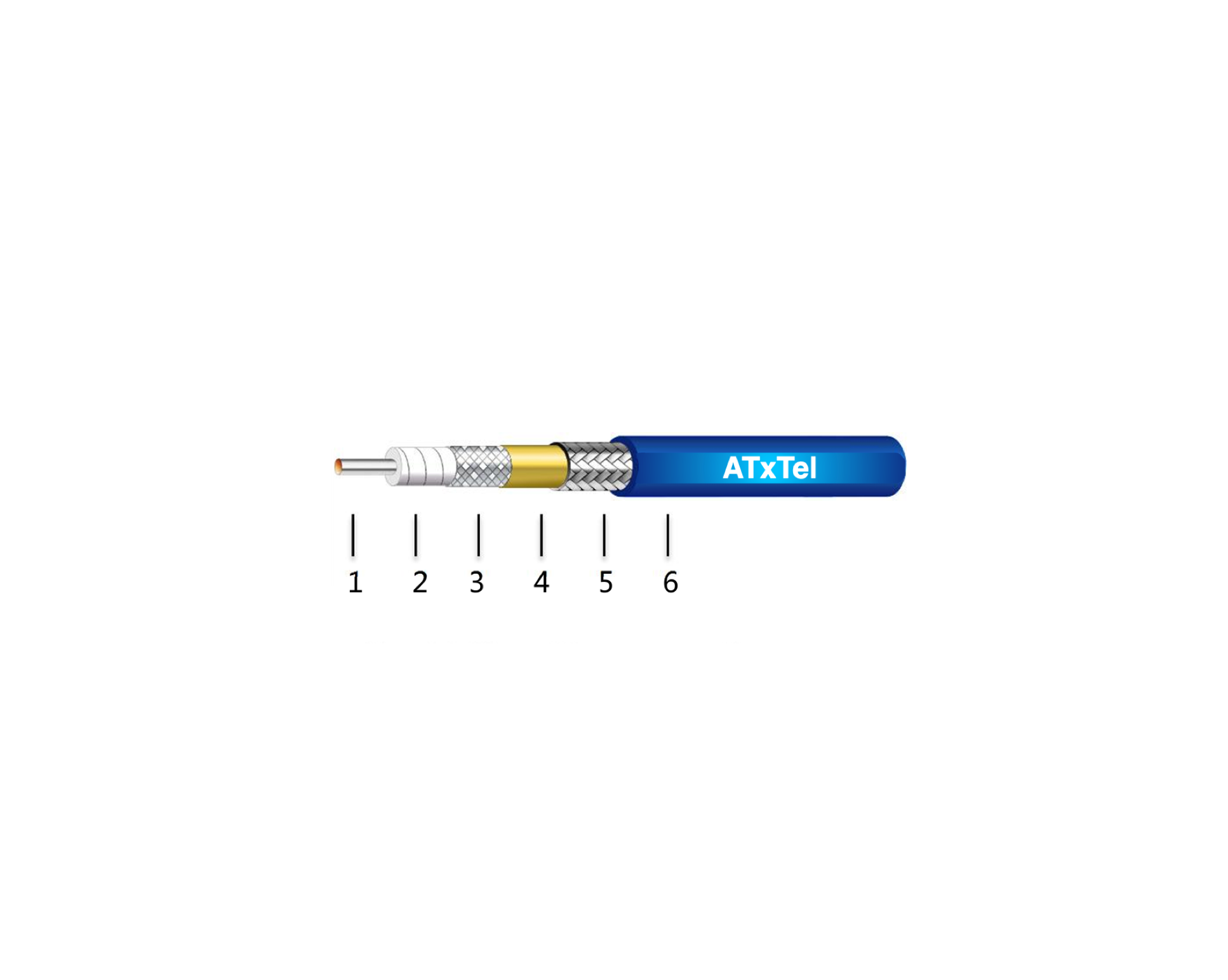

Construction Materials |
||||
|
|
Structure |
Material |
Diameter (mm) |
|
|
1 |
Inner Conductor |
Silver plated copper |
1.02 |
|
|
2 |
Dielectric |
Low-Density PTFE |
3.07 |
|
|
3 |
Inner Shield |
Braided Silver copper tape |
3.27 |
|
|
4 |
Middle Layer |
High-temperature aluminum foil |
3.43 |
|
|
5 |
Outer Shield |
Silver-plated copper wire |
3.94 |
|
|
6 |
Jacket |
Blue FEP |
4.60 |
|
|
Electrical Specifications |
|
|
Cable impedance |
50 ohm |
|
Shielding efficiency |
> 90 dB |
|
Velocity of Propagation |
76% |
|
Voltage Withstanding |
1000V DC |
|
Operating frequency |
DC-18 GHz |
|
Mechanical & Environmental Specifications |
|
|
Weight |
53 g/m |
|
Bend radius, Static (min) |
23 mm |
|
Bending radius, repeated bending |
46 mm |
|
Temperature range |
-55 ~ +200℃ |
|
Attenuation Typical Value (25°C & VSWR = 1.0) |
|
|
300 MHz |
0.19 dB/m |
|
1000 MHz |
0.35 dB/m |
|
3000 MHz |
0.62 dB/m |
|
6000 MHz |
0.89 dB/m |
|
8500 MHz |
1.06 dB/m |
|
12400 MHz |
1.30 dB/m |
|
18000 MHz |
1.58 dB/m |
Note: Minimum order quantity > 20
